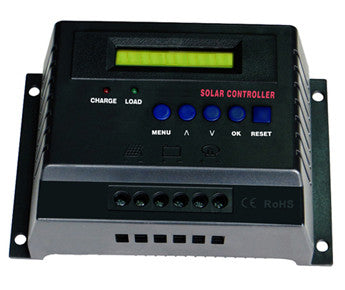

20-Amp 12-Volt/24-Volt Digital Solar Power Charge Controller

  • Sale
  • $59.99



This charge controller help control the charging current that sent from your solar panels to your dc battery bank. This 20 amp charge controller and be used with 12 volt and 24 volt battery banks. All solar power systems require a charge controller so that your charging current doesn't damage your reserve power.



FEATURED

  • Overload protection
  • Short circuit protection
  • Reverse discharge protection
  • Reverse polarity connection protection
  • Thunder protection
  • Low voltage protection
  • Overcharge protection
  • Battery stop and charge voltage HVD sets up
  • Charge and low voltage LCD sets up
  • Display the capability of the battery SOC
  • Loads and comeback setups
  • Intellectualized temperature compensation
  • Record and calculate the charged AH and display it on the LCD screen
  • Record and calculate the discharged AH and display it on the LCD screen
  • working temperature:-25C/+55C

SPECIFICATION

Model CS-20
  • Rated Voltage
12V / 24V Automatic voltage recognition
Max Load current 20A
Input voltage range 12V~17V / 24V~34V
Length=1m Charge loop drop < 0.25V
Length=1m Discharge loop drop < 0.05V
Over voltage protection 17V / 34V
Full charge cut 13.7V / 27.4V(Default value, can be otherwise set)
Low voltage cut 10.5V~11V / 21V~22V(Default value, can be otherwise set)
Temperature compensation -3mv/C/cell
No load loss Less than or equal to 20mA
Max wire area 4mm2
Ambient temperature -25C/+55C
Free Accessory Kit (Battery Cables)

APPLICATION

  • Solar charge controllers keep your batteries safe. A solar charge controller is required for any solar array of 12-Watt or higher. Solar panels are unregulated and can have a-voltage higher than necessary to charge 12-volt batteries. 20-Amp Solar Digital Charge Controller will prevent overcharging of batteries by regulating the-voltage from a 12-volt solar panel to a safe level for charging 12-volt batteries. Designed for use with 12-volt solar panels this solar charge controller is safe for use with up to 20-amp or 480-Watt from a solar array. This controller will also prevent over discharge of your battery as well as protect from high-voltage surges, short circuit and loss of power through the solar panel at night. A digital LCD screen displays charging current, load current, and battery-voltage in 5 second intervals. Two LED lights display charge function and battery status. A load terminal on the solar charge controller let you dedicate one item to run through the controller, when the batteries reach critical-voltage the load will be automatically turned off to prevent a dead battery and allow the solar panel to recharge the battery before the load turns on again. This feature helps to prolong the life of your battery. This charge controller may also be used with 24-volt solar panels and batteries. The charge controller is self-adjusting and will automatically set the charge cycle. You can connect multiple solar panels up to one controller so long as you do not exceed 480-Watt or 20-amp. The charge controller is meant to be permanently connected to the battery and the solar array even when you are drawing power from the battery. Solar charge controllers should installed close to the battery in a dry and ventilated area.
